PCB Manufacturing Process — A Step-by-Step Guide

Step 1: Design and Output

Circuit boards should be rigorously compatible with, a PCB layout created by the designer using PCB design software. Commonly-used PCB design software includes Altium Designer, OrCAD, Pads, KiCad, Eagle etc. NOTE: Before PCB fabrication, designers should inform their contract manufacturer about the PCB design software version used to design the circuit since it helps avoid issues caused by discrepancies.

Once the PCB design is approved for production, designers export the design into format their manufacturers support. The most frequently used program is called extended Gerber. The 1980’s baby food ad campaign sought beautiful babies, and this software creates some beautifully designed offspring. Gerber also goes by the name IX274X.

The PCB industry birthed extended Gerber as the perfect output format. Different PCB design software possibly calls for different Gerber file generation steps, they all encode comprehensive vital information including copper tracking layers, drill drawing, apertures, component notations and other options. All aspects of the PCB design undergo checks at this point. The software performs oversight algorithms on the design to ensure that no errors go undetected. Designers also examine the plan with regard to elements relating to track width, board edge spacing, trace and hole spacing and hole size.

After a thorough examination, designers forward PCB file to PC Board Houses for production. To ensure the design fulfills requirements for the minimum tolerances during manufacturing process, almost all PCB Fab Houses run Design for Manufacture (DFM) check before circuit boards fabrication.

Step 2: From File to Film

PCB printing begins after designers output the PCB schematic files and manufacturers conduct a DFM check. Manufacturers use a special printer called a plotter, which makes photo films of the PCBs, to print circuit boards. Manufacturers will use the films to image the PCBs. Although it’s a laser printer, it isn’t a standard laser jet printer. Plotters use incredibly precise printing technology to provide a highly detailed film of the PCB design.

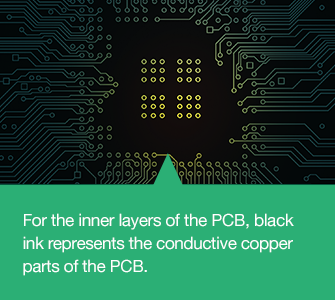

The final product results in a plastic sheet with a photo negative of the PCB in black ink. For the inner layers of PCB, black ink represents the conductive copper parts of the PCB. The remaining clear portion of the image denotes the areas of non-conductive material. The outer layers follow the opposite pattern: clear for copper, but black refers to the area that’ll be etched away. The plotter automatically develops the film, and the film is securely stored to prevent any unwanted contact.

Each layer of PCB and solder mask receives its own clear and black film sheet. In total, a two-layer PCB needs four sheets: two for the layers and two for the solder mask. Significantly, all the films have to correspond perfectly to each other. When used in harmony, they map out the PCB alignment.

To achieve perfect alignment of all films, registration holes should be punched through all films. The exactness of the hole occurs by adjusting the table on which the film sits. When the tiny calibrations of the table lead to an optimal match, the hole is punched. The holes will fit into the registration pins in the next step of the imaging process.

Step 3: Printing the Inner layers: Where Will the Copper Go?

The creation of films in previous step aims to map out a figure of copper path. Now it’s time to print the figure on the film onto a copper foil.

This step in PCB manufacturing prepares to make actual PCB. The basic form of PCB comprises a laminate board whose core material is epoxy resin and glass fiber that are also called substrate material. Laminate serves as an ideal body for receiving the copper that structures the PCB. Substrate material provides a sturdy and dust-resistant starting point for the PCB. Copper is pre-bonded on both sides. The process involves whittling away the copper to reveal the design from the films.

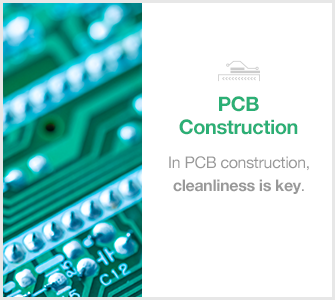

In PCB construction, cleanliness does matter. The copper-sided laminate is cleaned and passed into a decontaminated environment. During this stage, it’s vital that no dust particles settle on the laminate. An errant speck of dirt might otherwise cause a circuit to be short or remain open.

Next, the clean panel receives a layer of photo-sensitive film called photo resist. The photo resist comprises a layer of photo reactive chemicals that harden after exposure to ultra violet light. This ensures an exact match from the photo films to the photo resist. The films fit onto pins that hold them in place over the laminate panel.

The film and board line up and receive a blast of UV light. The light passes through the clear parts of the film, hardening the photo resist on the copper underneath. The black ink from the plotter prevents the light from reaching the areas not meant to harden, and they are slated for removal.

After the board becomes prepared, it is washed with an alkaline solution that removes any photo resist left unhardened. A final pressure wash removes anything else left on the surface. The board is then dried.

The product emerges with resist properly covering the copper areas meant to remain in the final form. A technician examines the boards to ensure that no errors occur during this stage. All the resist present at this point denotes the copper that will emerge in the finished PCB.

This step only applies to boards with more than two layers. Simple two-layer boards skip ahead to drilling. Multiple-layer boards require more steps.

Step 4: Removing the Unwanted Copper

With the photo resist removed and the hardened resist covering the copper we wish to keep, the board proceeds to the next stage: unwanted copper removal. Just as the alkaline solution removed the resist, a more powerful chemical preparation eats away the excess copper. The copper solvent solution bath removes all of the exposed copper. Meanwhile, the desired copper remains fully protected beneath the hardened layer of photo resist.

Not all copper boards are created equal. Some heavier boards require larger amounts of copper solvent and varying lengths of exposure. As a side note, heavier copper boards require additional attention for track spacing. Most standard PCBs rely on similar specification.

Now that the solvent removed the unwanted copper, the hardened resist protecting the preferred copper needs washing off. Another solvent accomplishes this task. The board now glistens with only the copper substrate necessary for the PCB.

Step 5: Layer Alignment and Optical Inspection

With all the layers clean and ready, the layers require alignment punches to ensure they all line up. The registration holes align the inner layers to the outer ones. The technician places the layers into a machine called the optical punch, which permits an exact correspondence so the registration holes are accurately punched.

Once the layers are placed together, it’s impossible to correct any errors occurring on the inner layers. Another machine performs an automatic optical inspection of the panels to confirm a total absence of defects. The original design from Gerber, which the manufacturer received, serves as the model. The machine scans the layers using a laser sensor and proceeds to electronically compare the digital image with the original Gerber file.

If the machine finds inconsistency, the comparison is displayed on a monitor for the technician to assess. Once the layer passes inspection, it moves to the final stages of PCB production.

Step 6: Layer-up and Bond

In this stage, the circuit board takes shape. All the separate layers await their union. With the layers ready and confirmed, they simply need to fuse together. Outer layers must join with the substrate. The process happens in two steps: layer-up and bonding.

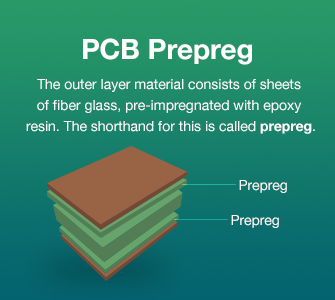

The outer layer material consists of sheets of fiber glass, pre-impregnated with epoxy resin. The shorthand for this is called prepreg. A thin copper foil also covers the top and bottom of the original substrate, which contains the copper trace etchings. Now, it’s time to sandwich them together.

The bonding occurs on a heavy steel table with metal clamps. The layers securely fit into pins attached to the table. Everything must fit snugly to prevent shifting during the alignment.

A technician begins by placing a prepreg layer over alignment basin. The substrate layer fits over the prepreg before the copper sheet is placed. Further sheets of prepreg sit on top of the copper layer. Finally, an aluminum foil and copper press plate complete the stack. Now it’s prepped for pressing.

The entire operation undergoes an automatic routine run by the bonding press computer. The computer orchestrates the process of heating up the stack, the point in which to apply pressure, and when to allow the stack to cool at a controlled rate.

Next, a certain amount of unpacking occurs. With all the layers molded together in a super sandwich of PCB glory, the technician simply unpacks the multi-layer PCB product. It’s a simple matter of removing the restraining pins and discarding the top pressure plate. The PCB goodness emerges victorious from within its shell of aluminum press plates. The copper foil, included in the process, remains to comprise the outer layers of the PCB.

Step 7: Drill

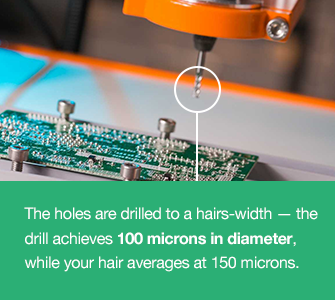

Finally, holes are bored into the stack board. All components slated to come later, such as copper-linking via holes and leaded aspects, rely on the exactness of precision drill holes. The holes are drilled to a hairs-width – the drill achieves 100 microns in diameter, while hair averages at 150 microns.

To find the location of the drill targets, an x-ray locator identifies the proper drill target spots. Then, proper registration holes are bored to secure the stack for the series of more specific holes.

Before drilling, the technician places a board of buffer material beneath the drill target to ensure a clean bore is enacted. The exit-material prevents any unnecessary tearing upon the drill’s exits.

A computer controls every micro-movement of the drill – it’s only natural that a product that determines the behavior of machines would rely on computers. The computer-driven machine uses the drilling file from the original design to identify the proper spots to bore.

The drills use air-driven spindles that turn at 150,000 rpm. At this speed, you might think that drilling happens in a flash, but there are many holes to bore. An average PCB contains well over one hundred bore intact points. During drilling, each needs its own special moment with the drill, so it takes time. The holes later house the vias and mechanical mounting holes for the PCB. The final affixation of these parts occurs later, after plating.
